Unplanned downtime and fugitive emissions frequently stem from bolted joint failures, even when exact torque specifications and premium materials are utilized. Maintenance and reliability engineering teams often misdiagnose leaks as gasket failures, overlooking the macroscopic condition of the mating surfaces. Attempting to seal a compromised flange with standard protocols leads to repeated blowouts, environmental compliance risks, and escalating maintenance costs. Achieving long-term joint integrity requires shifting focus from the gasket alone to the mechanical relationship between the flange face and the elastomer. This guide evaluates the technical realities of flange flatness, its direct impact on rubber gasket sealing, and evidence-based methodologies for diagnosing and correcting out-of-tolerance joints.
Elastomeric materials have finite limits for compression and recovery; they cannot permanently compensate for severe macroscopic flange distortion (warping, cupping, or rotation).
Inadequate flange flatness prevents the uniform distribution of minimum seating stress, leading to localized over-compression (crushing/extrusion) and under-compression (leak paths).
Increasing gasket thickness to bridge uneven flange gaps is a high-risk, temporary mitigation strategy that increases the likelihood of blowout and creep relaxation.
Permanent resolution of flatness deviations requires mechanical intervention, such as in-place flange facing or machining, rather than relying on gasket material substitutions.
Table of Contents
Achieving a reliable seal requires hitting a specific minimum seating stress. This represents the baseline compressive load necessary to physically force the elastomer into the microscopic imperfections of the metal face. You must generate enough mechanical force to make the rubber flow into the phonographic grooves of the flange. If the material does not penetrate these grooves, internal fluid or gas will easily find a leak path across the metal surface. Rubber Gasket Sealing relies entirely on this uniform distribution of compressive load.
Rubber possesses natural elasticity, allowing it to conform tightly to metal surfaces when you tighten the flange bolts. However, this conformability has strict physical limits. Elastomers are essentially incompressible by volume. When you compress a rubber sheet vertically, it must expand laterally. If you push the material past its yield point by applying uneven or excessive force, the polymer chains break down. The material fractures, splits, or extrudes completely out of the joint. You cannot simply compress rubber infinitely to fill a massive gap caused by a bent flange.
Engineers design bolted joints with a specific structural assumption: the mating surfaces are parallel and perfectly flat. This ideal geometry ensures the applied bolt load distributes evenly across the entire contact area of the seal. When surfaces deviate from this flat ideal, load distribution becomes erratic and unpredictable. The joint must also overcome hydrostatic end force. This is the internal pressure of the piping system actively trying to push the flanges apart. If the initial seating stress is uneven due to poor geometry, the hydrostatic end force will easily breach the weaker, low-compression sections of the seal.
Field technicians must also distinguish between applied bolt torque and actual compressive force. Torque simply measures the rotational force applied to the nut. Compressive force does the actual work of sealing the joint. If a flange is warped or cupped, much of that rotational force is wasted. The energy goes into bending the steel flanges together or attempting to bridge uneven gaps. This leaves insufficient residual load to actually compress the elastomer. Proper sealing requires that the vast majority of bolt load transfers directly into the seal, not into overcoming poor metal geometry.

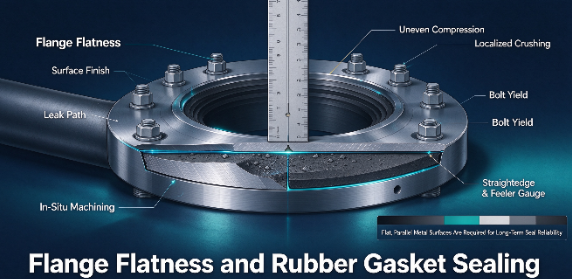

Flange flatness and surface finish are two critical factors affecting gasket sealing performance. Although both influence joint reliability, they describe different surface characteristics and require different inspection methods.
Flange flatness refers to the overall evenness of the mating surface. A flat flange distributes compression evenly across the gasket, while warped or bowed surfaces create uneven pressure and potential leakage paths.
Key requirement: Maintain uniform contact across the sealing face.
Inspection tools: Precision straightedge, feeler gauges, or laser measurement equipment.
Common problems: Warping, bowing, flange rotation, and uneven compression.
Surface finish describes the microscopic roughness and texture of the flange face, typically measured in Ra (microinches or micrometers). The correct finish helps the gasket conform to surface irregularities and maintain a reliable seal.
Too smooth: May reduce gasket retention in certain applications.
Too rough: Can create microscopic leakage paths.
Recommended approach: Follow the gasket manufacturer's specified surface roughness and finish pattern.
Characteristic | Flange Flatness | Surface Finish |
|---|---|---|
Definition | Overall surface evenness | Microscopic surface texture |
Measurement | Straightedge, feeler gauges | Profilometer, roughness comparator |
Main Issue | Uneven gasket compression | Leakage or gasket instability |
Common Causes | Warping, excessive bolt load | Improper machining, wear |
Solution | Resurfacing or flange replacement | Surface refinishing |
Flange Warping and Bowing
Often caused by excessive tightening, uneven bolt loads, or thermal cycling, resulting in inconsistent gasket compression.
Pitting and Corrosion
Chemical exposure and moisture can damage the sealing face, creating localized leak paths.
Improper Surface Roughness
Excessively rough or unsuitable surface finishes can prevent proper gasket contact and reduce sealing reliability.
Key Takeaway: Flange flatness ensures even gasket compression, while surface finish supports effective contact sealing. Both must meet the gasket manufacturer's requirements to prevent leakage and premature failure.
An out-of-flat flange creates dangerous zones of high and low compression across the sealing face. In low-stress areas, the joint completely fails to reach minimum seating stress. This creates immediate, active leak paths. The elastomer simply does not experience enough mechanical force to block fluid or gas. Internal pressure easily bypasses the seal. You might notice weeping or dripping in these specific low-compression zones, even if the rest of the flange appears perfectly tight. No amount of retorquing will fix a gap caused by bent steel.
Conversely, high-stress zones on a warped flange severely over-compress the rubber. This leads to immediate material extrusion. The rubber pushes outward laterally because it has nowhere else to go. You will often see slipping, pinching, and physical fracturing of the elastomer structure. The material literally breaks down under the uneven mechanical strain. This localized crushing destroys the structural integrity of the flange flatness rubber gasket, rendering it useless against pressure spikes or system vibrations.
Uneven loading also accelerates permanent set. When specific sections of the rubber are forced beyond their elastic limit, they lose their ability to recover. The material stays permanently flattened. Once permanent set occurs, the joint loses its dynamic responsiveness. It can no longer adapt to pressure spikes, vibration, or thermal expansion. As the pipe system heats up and cools down, the flanges move slightly. A seal with severe permanent set cannot expand to fill the changing gap, guaranteeing a blowout.
Furthermore, uneven compression creates a bending moment on the bolts themselves. This uneven stress leads to fatigue failure in the fasteners over time. The entire structural integrity of the bolted joint degrades rapidly when the mating surfaces are not flat. The uneven stress distribution also accelerates chemical degradation. When the rubber is highly stressed in localized areas, it becomes more susceptible to chemical attack from the process fluid, causing premature material breakdown and sudden failure.
Accurate flange flatness measurement is essential for preventing gasket leakage and ensuring uniform compression. Standards such as ASME PCC-1 provide guidance for flange joint inspection, while acceptable tolerances depend on flange size, pressure class, gasket material, and applicable specifications.
The straightedge and feeler gauge method is commonly used for field inspections.
Clean the surface: Remove rust, debris, and old gasket residue.
Position the straightedge: Place a precision straightedge across the flange sealing face.
Measure gaps: Use feeler gauges to identify deviations beneath the straightedge.
Check multiple directions: Rotate the straightedge approximately 45° and repeat measurements.
Record results: Document the maximum deviation and compare it with the applicable tolerance.
For critical applications, laser metrology and contact-pattern testing can provide more detailed assessments.
Flange Condition | Measurement Focus | Inspection Goal |
|---|---|---|
Radial Flatness | Inner-to-outer diameter deviation | Consistent sealing surface contact |
Circumferential Flatness | Waviness around the flange | Uniform gasket compression |
Cross-Face Warpage | Bowing across the flange diameter | Acceptable overall flatness |
Surface Damage | Pitting, scratches, corrosion | No defects exceeding sealing limits |
Important: Acceptable flatness tolerances should be determined from applicable standards and manufacturer specifications rather than using one universal numerical limit.
When flange flatness falls outside acceptable limits, corrective measures should focus on restoring proper surface geometry and consistent gasket compression.
Flange resurfacing is a reliable solution for correcting warping, bowing, and surface irregularities. In-situ machining can restore flatness and the required surface finish without completely removing the flange assembly, helping reduce recurring leaks and maintenance costs.
Thicker gaskets can accommodate minor surface irregularities but may increase creep relaxation and extrusion risks. Thinner gaskets generally provide better dimensional stability and blowout resistance but require flatter mating surfaces. Selection should consider flange condition, pressure, and gasket material.
Expanded PTFE and specialized composite gaskets may accommodate minor flange imperfections where conventional rubber gaskets are unsuitable. However, material changes must be verified against operating pressure, temperature, chemical compatibility, and compression requirements. Significant flange distortion still requires proper mechanical repair.
Key Takeaway: Accurate measurement, proper flange resurfacing, and suitable gasket selection are essential for maintaining reliable sealing performance. Gasket thickness or material changes should not be used to compensate for flange damage beyond acceptable tolerances.
Audit current bolted joint assembly procedures to mandate straightedge and feeler gauge flatness checks before any installation.
Equip all field maintenance teams with precision machinist straightedges and train them on proper gap identification techniques.
Establish strict quantitative threshold limits in your maintenance SOPs that trigger mandatory in-situ flange facing or machining.
Consult with mobile machining specialists to repair out-of-spec infrastructure during planned turnarounds rather than relying on thicker elastomers.
A: No. While elastomers have natural elasticity, they cannot permanently bridge severe macroscopic distortions. A warped flange causes uneven compression, leading to localized crushing and leak paths. Mechanical correction is required for severe warping.
A: Acceptable tolerances vary by flange size and pressure class, but generally, radial flatness should not deviate more than 0.005 inches, and circumferential flatness should remain under 0.010 inches. Always consult ASME PCC-1 guidelines for specific application limits.
A: A thinner gasket requires more precise flange flatness and uniform compression force to seal effectively. However, it offers superior long-term stability, better load retention, and a significantly lower risk of blowout or creep relaxation compared to thicker alternatives.
A: Flange flatness refers to the overall macroscopic planar integrity of the surface, ensuring there is no warping or bowing. Surface finish refers to the microscopic roughness or smoothness of the metal face, which provides the necessary friction to hold the seal in place.
A: A surface finish that is too smooth lacks the necessary microscopic friction to grip the elastomer. When bolt load and internal pressure are applied, the rubber can easily slip laterally or extrude out of the joint, resulting in an immediate blowout.
A: Over-torquing bolts to force a seal on an uneven flange is highly dangerous. It often leads to bolt yield, structural cracking of the flange, and catastrophic crushing of the elastomer. This practice destroys the joint's integrity rather than fixing the leak.
