The reliability of industrial, medical, and electronic equipment relies heavily on the integrity of its enclosure; a failed seal can lead to catastrophic ingress, electrical shorts, or compliance violations. Engineers and procurement teams often struggle to balance closure force requirements, environmental exposures, and budget constraints when designing enclosure seals. This frequently leads to over-specified materials, premature gasket failure, or improper installation. This guide provides a rigorous framework for evaluating and specifying silicone gaskets for equipment covers—sometimes referred to as silicone seal rings in circular applications—detailing material grades, compression dynamics, and manufacturing methods to ensure long-term performance.
Match Material State to Closure Force: Select solid silicone for high-pressure, heavy-duty covers, and silicone sponge or foam (e.g., HT800) for lightweight enclosures requiring low closure force.
Verify Environmental Limitations: While silicone excels in extreme temperatures (-55ºC to +300ºC) and UV/ozone exposure, it requires specific fluorosilicone blends for environments with heavy oil, fuel, or solvent exposure.
Prioritize Compression Set Resistance: Specify materials with low compression set percentages to ensure the gasket maintains its rebound and sealing capability over years of mechanical cycling.
Account for Vibration Dampening: Leverage silicone's inherent elasticity to isolate sensitive internal components from mechanical shock and eliminate equipment cover rattle.
Align with Regulatory Standards: Ensure the specified silicone grade meets necessary industry certifications, such as UL 94 for flame retardancy, FDA compliance for food processing, or specific IP/NEMA ratings for dust and water ingress.
Table of Contents
Selecting the correct elastomer for an equipment enclosure dictates the lifespan of the internal components. Silicone stands out among synthetic rubbers due to its unique siloxane polymer backbone. This inorganic silicon-oxygen structure requires significantly more energy to break than the carbon-carbon bonds found in standard organic elastomers like EPDM or neoprene. This chemical reality translates directly into superior field performance across diverse operating environments.
Silicone gaskets maintain flexibility and sealing performance across a wide temperature range, typically from -55°C to 200°C, with specialized grades supporting higher temperatures. Unlike many conventional rubbers, silicone resists hardening in cold environments and degradation under high heat, making it ideal for outdoor enclosures, industrial equipment, and temperature-sensitive applications.
Silicone gaskets offer excellent resistance to UV radiation, ozone, and outdoor weathering. Their stable chemical structure helps prevent cracking, hardening, and premature aging during prolonged environmental exposure. They are widely used in outdoor electrical enclosures, marine equipment, and aerospace applications requiring long-term sealing reliability.
Silicone gaskets provide good compression set resistance, helping them maintain elasticity and sealing pressure over time. Their ability to recover after compression makes them suitable for equipment covers, control panels, and enclosures requiring periodic maintenance. Proper gasket design reduces replacement frequency, leakage risks, and equipment downtime.
Silicone gaskets help absorb vibration and reduce noise by cushioning contact between equipment components. They are commonly used in industrial machinery, automotive systems, generators, and compressor housings. Their combination of vibration isolation and environmental sealing helps protect sensitive components and improve equipment reliability.
Specifying the right type of silicone requires matching the material's physical state to the mechanical design of your equipment cover. You must evaluate the rigidity of the cover, the available fastener torque, and the required sealing pressure. Selecting a material that demands more closure force than your cover can provide will result in mechanical failure.
Solid silicone gaskets offer excellent durability, tear resistance, and reliable sealing performance but require higher compression force. They are best suited for rigid metal enclosures, heavy machinery, and high-pressure washdown applications. With proper enclosure design, they can support demanding IP67 and IP68 sealing requirements.
Silicone sponge and foam gaskets provide excellent flexibility and sealing with low compression force. Closed-cell materials offer better water resistance, while open-cell structures compress more easily but may require additional protection against moisture. They are ideal for lightweight plastic enclosures, electronic displays, and sheet metal covers with uneven surfaces.
Solid silicone provides greater mechanical durability but requires higher sealing pressure and rigid surfaces. Silicone sponge and foam offer better compressibility and adaptability to uneven surfaces but generally have lower abrasion resistance. Material selection should balance cost, compression force, durability, and environmental sealing requirements.

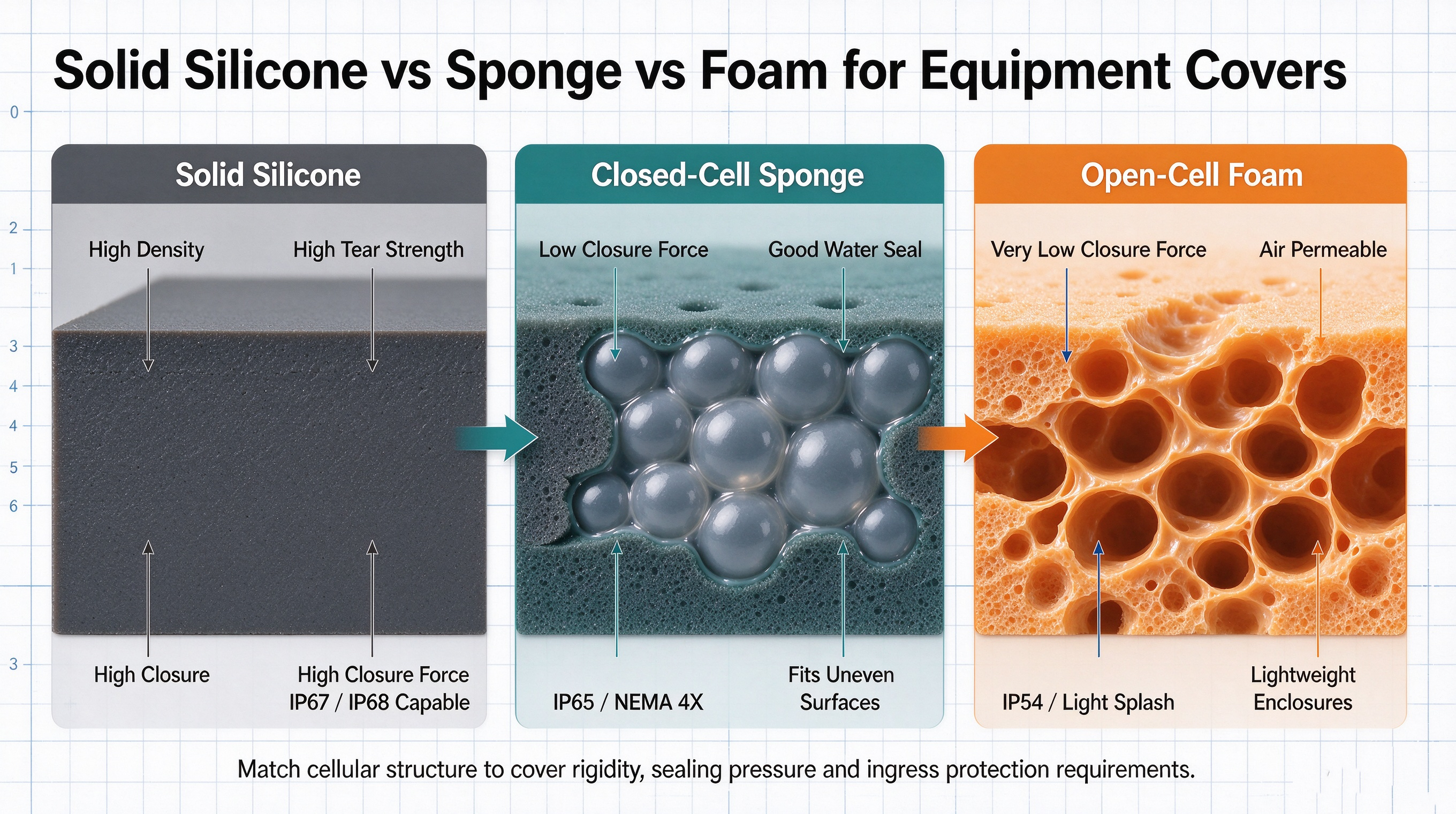

Comparison of Solid, Sponge, and Foam Silicone for Equipment Covers | |||
Property | Solid Silicone | Closed-Cell Sponge | Open-Cell Foam |
|---|---|---|---|
Cellular Structure | Non-porous, dense matrix | Gas-filled, sealed pockets | Interconnected air pathways |
Firmness Metric | Shore A Durometer | Compression Force Deflection (CFD) | Compression Force Deflection (CFD) |
Required Closure Force | High (Requires rigid covers) | Low to Medium | Very Low |
Environmental Sealing | Excellent (IP67/IP68) | Very Good (IP65/NEMA 4X) | Dust/Light Splash Only (IP54) |
Optimal Application | Cast metal housings, heavy pumps | Sheet metal panels, NEMA boxes | LCD displays, lightweight plastics |
Moving from a general material category to a specific part number requires defining exact physical specifications. You must quantify the hardness, map the ingress protection requirements, and verify chemical compatibility against the operating environment.
Silicone gasket hardness affects sealing performance and compression requirements. Solid silicone is measured using Shore A hardness, while foam and sponge materials use Compression Force Deflection (CFD). Softer gaskets are better suited for flexible plastic covers, while harder grades work well with rigid metal enclosures. Selecting the right hardness helps prevent cover deformation, excessive stress, and sealing failure.
Silicone gaskets help equipment enclosures meet protection standards such as IP65, IP67, and NEMA 4X by preventing water and dust ingress. Proper gasket width, thickness, compression, and material selection are essential for reliable sealing. The gasket design must match the enclosure structure and operating environment, with final protection ratings verified through appropriate enclosure testing.
While standard silicone is highly resilient to weather and temperature, it has distinct chemical vulnerabilities. You must provide a transparent assessment of the operating environment. Standard silicone degrades rapidly when exposed to concentrated acids. More importantly, it swells significantly and loses its mechanical strength when exposed to fuels, jet fuel, or petroleum-based motor oils.
If your equipment cover operates in an automotive, aerospace, or heavy industrial setting with oil exposure, standard silicone will fail. Fluorosilicone (FVMQ) serves as the necessary upgrade path. It alters the polymer chain to provide robust chemical resistance while maintaining silicone's extreme temperature range. Integrating the right Silicone Gaskets requires strict attention to these chemical limitations to prevent catastrophic field failures.
Many equipment enclosures operate in highly regulated sectors. Specifying a generic silicone grade can lead to failed inspections, safety hazards, or product recalls. You must align the material with industry-specific certifications.
FDA-compliant silicone rubber is commonly used in food processing and pharmaceutical equipment to support hygienic sealing. Materials intended for applicable food-contact uses should meet 21 CFR 177.2600 requirements and resist contamination. Platinum-cured silicone can also withstand repeated cleaning and sterilization cycles, depending on its formulation and rated temperature limits.
UL 94 V-0 rated silicone is designed for electronic enclosures, battery covers, and industrial control panels requiring flame resistance. It meets specific self-extinguishing and flaming-drip criteria under standardized testing, helping reduce fire propagation risks. Selecting an appropriate flame-retardant grade improves equipment safety and supports applicable compliance requirements.
EMI/RFI shielding silicone combines environmental sealing with electromagnetic interference protection. Conductive fillers such as nickel-graphite or silver-aluminum create electrical conductivity between enclosure surfaces while helping block dust and moisture. These gaskets are commonly used in medical devices, aerospace electronics, and communication equipment where shielding performance and material compatibility are essential.
A perfectly specified material can still fail if manufactured incorrectly or installed poorly. Understanding the production methods and installation risks ensures the gasket performs as designed in the field.
The geometry of your equipment cover dictates the optimal manufacturing method. Each approach carries different tooling costs and material yield considerations.
Manufacturing Methods for Silicone Enclosure Seals | |||
Method | Best Application | Tooling Cost | Design Considerations |
|---|---|---|---|
Die-Cutting | Flat, 2D equipment covers | Low | High scrap rate for large hollow frames. Fast turnaround. |
Extrusion | Large enclosures, continuous grooves | Medium | Allows custom profiles (P, D, e-shapes). Requires vulcanized splicing for rings. |
Molding | Complex 3D geometries, custom boots | High | Zero splice joints. Perfect for highly specific vibration isolators. |
Silicone gaskets require specialized pressure-sensitive adhesives (PSAs) for reliable bonding. Acrylic PSAs may be suitable for compatible surfaces, while silicone PSAs generally offer better adhesion to silicone and high-temperature resistance. For proper installation, clean the surface with isopropyl alcohol and water, allow it to dry completely, and apply firm, even pressure. Follow the adhesive manufacturer's recommended dwell time, typically up to 24 hours, to achieve optimal bond strength.
Field failures rarely stem from the silicone material itself; they usually result from mechanical design flaws or operator error during installation.
Over-compression: Engineers often assume tighter is better. Compressing a solid silicone gasket beyond its recommended limit (typically 25-30%) destroys its internal polymer network. Sponge materials can handle up to 50% compression. Exceeding these limits causes permanent deformation. The gasket loses its rebound memory and will fail to seal the next time the cover is opened. Utilize compression stops, such as metal limiters or step-machined grooves, in your enclosure design to physically prevent over-tightening.
Stretch during Installation: Operators frequently pull and stretch extruded gaskets while pressing them into cover grooves. Silicone naturally wants to return to its original length. Over time, a stretched gasket will shrink back, causing severe gap formation at the spliced seams. Train assembly teams to lay the gasket into the groove neutrally, without applying longitudinal tension.
Improper Groove Sizing: A gasket needs space to displace when compressed. If a groove is too narrow, the silicone will overfill the channel and prevent the cover from seating flush against the housing. Always design the groove volume to be at least 10% larger than the gasket's total volume.
Define the exact temperature extremes and chemical exposures the cover will face to determine if standard silicone or fluorosilicone is required.
Calculate the available closure force generated by your fasteners to choose correctly between solid silicone or cellular sponge.
Request comprehensive material data sheets (MDS) from your supplier to verify compression set percentages and thermal limits.
Order prototype material samples to conduct physical compression and closure force testing on your actual equipment cover.
Implement hard compression stops in your CAD design to physically prevent assembly operators from over-compressing the seal during installation.
A: Standard silicone gaskets typically operate effectively between -55ºC and +300ºC (-67ºF to 450ºF). This broad thermal stability prevents the material from becoming brittle and shattering in freezing conditions, or melting and outgassing during high-heat applications, making it ideal for extreme environments.
A: Solid silicone gaskets generally require 25% to 30% compression to achieve a proper environmental seal. Silicone sponge and foam can safely be compressed up to 50%. Over-compressing the material damages its internal polymer structure, causing permanent deformation and subsequent leak paths.
A: Silicone sponge features a closed-cell structure, trapping gas in individual sealed pockets to block water ingress effectively. Silicone foam typically utilizes an open-cell structure, allowing air to pass through while offering extreme compressibility for lightweight enclosures requiring very low closure force.
A: No. Standard silicone degrades, swells significantly, and loses mechanical strength when exposed to concentrated acids, fuels, or petroleum-based oils. For harsh chemical environments, you must specify fluorosilicone, which alters the polymer chain to combine thermal stability with robust chemical resistance.
A: You must match the durometer to the rigidity of the cover. Thin sheet metal requires a softer durometer (or a cellular sponge material) to prevent the cover from bowing between fastener points. Rigid, cast metal covers can handle harder, higher-durometer solid silicone profiles.
A: Yes. Silicone possesses inherent, long-term resistance to ultraviolet light, ozone, and general weathering. Its inorganic chemical backbone prevents the surface cracking and degradation commonly seen in natural rubber, making it the baseline standard for outdoor telecommunications and electrical boxes.
A: The most reliable method uses a Pressure Sensitive Adhesive (PSA) backing designed specifically for silicone's low surface energy. Proper attachment requires meticulous surface preparation, ensuring the metal or plastic substrate is completely free of oils, dust, and mold release agents before application.
