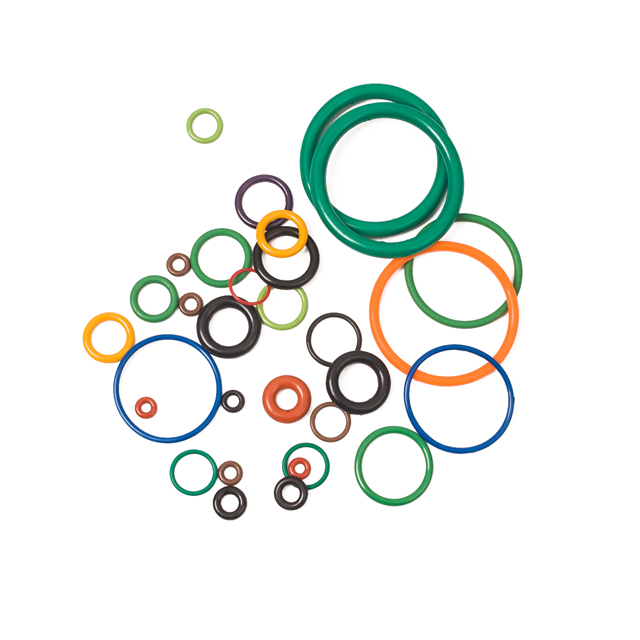

When choosing a seal, size matters as much as the material. Many people know FKM O-rings are strong, but few realize how precise their sizing must be. Picking the wrong size can lead to leaks or damage. In this post, you'll learn how to identify the correct FKM O-ring size using ID, cross-section, tolerances, and global standards.
FKM O-ring sizing follows clear dimensional rules, and each dimension affects how the seal performs under pressure, heat, and chemical exposure. Engineers rely on three core measurements—ID, CS, and OD—plus several application factors. When these elements align, the seal stays tight, even in harsh industrial environments.
The inner diameter forms the foundation of O-ring sizing. It tells you how the ring fits around a shaft or inside a groove, and even small variations can create leaks. ID controls how much the ring stretches when installed, so engineers avoid extreme stretching because it weakens sealing force. Many FKM O-rings use metric IDs, although AS568 dash sizes still dominate in U.S. systems.
The cross-section affects the contact pressure that the O-ring generates once compressed. A thicker CS resists extrusion, handles higher pressure, and delivers stronger sealing force. It also influences how grooves are machined, since the groove depth depends on CS. Manufacturers often offer CS values such as 1.8 mm, 2.65 mm, and 3.55 mm for most industrial uses.
CS Effects on Performance
CS Size | Pressure Capability | Common Use |
1.8 mm | Low–medium | Valves, electronics |
2.65 mm | Medium | Pumps, cylinders |
3.55 mm | High | Heavy-duty hydraulics |
OD equals ID plus twice the CS. It helps verify whether the ring fits within a recess or housing. OD becomes critical in large O-rings because small CS changes significantly impact the final OD. Installers use OD to ensure the seal doesn't experience buckling or uncontrolled compression.
Precision matters. FKM O-rings operate in demanding environments, so loose tolerances can ruin sealing performance. ID and CS each carry specific allowable variations. These tolerances keep sizing consistent across batches, and they prevent misfits in hydraulic, chemical, or semiconductor systems that rely on exact dimensions.
Engineers follow safe ranges because the material expands slightly under heat and chemicals. ID stretch typically stays between 1–5% for static seals and up to 8% for dynamic ones. Compression sits between 20–30% of the CS. Going beyond these limits increases friction or causes early cracking.
Parameter | Ideal Range |
ID Stretch (Static) | 1–5% |
ID Stretch (Dynamic) | 3–8% |
CS Compression | 20–30% |
Static seals stay in fixed positions, so installers choose tighter fits and minimal stretch. Dynamic seals move, so they need slightly larger IDs, controlled compression, and a CS that prevents friction or wear. Engineers also select smoother groove surfaces for dynamic systems because rough surfaces cut into FKM over time.
FKM swells when exposed to oils, fuels, or high-temperature chemicals. It expands less than NBR or EPDM, but the growth still matters. Designers often choose an ID slightly smaller to offset chemical swell. Heat accelerates expansion, so operating temperature also influences final sizing. Swelling varies by FKM grade, fluorine content, and media type.
FKM O-rings follow several global sizing systems, and each system offers a structured way to identify ID, cross-section, and tolerance. These standards keep parts compatible across industries, and they help engineers avoid sizing errors. When companies replace or source new seals, the correct standard ensures every ring fits as expected, even under pressure or heat.
AS568 remains the most widely used size system in North America. It organizes O-ring sizes into “dash numbers,” and each number represents a fixed ID and CS. Engineers prefer this system because it covers hundreds of sizes, and it supports aerospace, automotive, and hydraulic equipment. Dash sizes such as -010 or -214 appear frequently in industrial catalogs, and they simplify reordering because suppliers recognize the numbering instantly.
Dash Number | ID (in) | CS (in) | Typical Application |
-010 | 0.239 | 0.070 | Automotive fittings |
-214 | 0.984 | 0.139 | Hydraulic pumps |
-325 | 2.484 | 0.275 | Chemical valves |
AS568 works best when users need predictable tolerances and interchangeability across U.S.-based machinery.
ISO 3601 supports metric IDs and CS values, and it’s used across Europe and global manufacturing. It includes Class A for precision applications and Class B for general industrial use. Many FKM O-ring suppliers ship ISO 3601 sizes because these metric dimensions integrate smoothly into automated production lines. It removes guesswork in international equipment where inch sizes don’t apply.
ISO 3601 Coverage
● Class A: tight tolerance, matches many AS568 equivalents
● Class B: cost-effective metric sizes
● Common CS values: 1.8 mm, 2.65 mm, 3.55 mm
JIS B 2401 organizes O-rings into four groups: P, G, S, and V. It defines the ID in increments of 0.1 mm, and it includes hardness options such as Shore A 70 or 80. Japanese automotive and robotics manufacturers rely on JIS because it supports high-precision sealing in dynamic systems. Many FKM rings used in fuel injectors, pumps, or servo equipment follow these JIS requirements.
Group | Feature | Common Use |
P | General purpose | Automotive |
G | High pressure | Hydraulic |
S | Special sizes | Robotics |
V | Vacuum | Semiconductor tools |
GB/T 3452.1 aligns closely to ISO 3601, and it replaces older GB standards once used in Chinese factories. It lists sizes as CS × ID, so a size like 1.8 × 4 represents a 1.8 mm CS and a 4 mm ID. Many Chinese hydraulic, HVAC, and chemical systems use GB/T sizing because it matches domestic machining and reduces lead time. It also supports large-diameter FKM O-rings used in reactors and pipe systems.
GB/T Features
● Metric system for local manufacturing
● Consistent tolerances across CS ranges
● Works well for mass-production equipment
Standards prevent confusion by giving every size a universal code. They help teams avoid mismatched IDs, incorrect CS values, or incompatible tolerances. When engineers use the correct system, they reduce installation errors, improve sealing life, and ensure that any replacement matches the original component.
FKM O-rings appear in a wide range of sizes, and each size group supports different pressure, temperature, and chemical demands. Industries select sizes based on groove dimensions, media exposure, and operating cycles. Many suppliers offer hundreds of options, yet several size categories dominate because they match the most common equipment designs around the world.
Small FKM O-rings often range from 1.8 mm to 20 mm in inner diameter. They seal miniature components, and they stay stable in fuels, oils, or compressed air. These sizes fit connectors, sensors, solenoids, and circuit housings where space is tight. They also maintain elasticity under heat, so electronic modules use them for long-term reliability.
Typical features include low CS values and light compression, and they help prevent microleaks in precision systems.
ID × CS (mm) | Application |
1.8 × 4 | Mini valves, sensing modules |
7 × 1.8 | Semiconductor connectors |
10 × 2 | Fuel injectors |
15 × 2.65 | Pneumatic couplings |
These compact sizes support equipment where pressure is low but chemical exposure remains constant.
Medium sizes cover IDs from about 21 mm to 50 mm. They serve hydraulic cylinders, automotive pumps, crankcase systems, and industrial compressors. Many rings in this group use a 3.55 mm CS because it resists pressure surges and carries strong sealing force. This group represents some of the most frequently ordered FKM O-rings in global markets.
Medium sizes help create reliable barriers in moving parts, and they reduce extrusion under load.
ID × CS (mm) | Application |
25 × 3.55 | Hydraulic pump seals |
32 × 2.65 | Engine coolant housings |
44.5 × 1.8 | Petrochemical pipe connectors |
50 × 3.55 | Industrial gear systems |
These sizes appear in machines where heat and oil exposure demand stronger materials.
Large FKM O-rings range from 51 mm to over 200 mm. They seal flanges, reactors, water treatment pipes, and large-diameter valves. These rings maintain structure under chemical attack, and they perform well in acids, hydrocarbons, and high-temperature fluids. Large rings use low CS values in ultra-wide IDs to avoid distortion, yet some heavy-duty installations require thick CS options for additional support.
Large O-rings help stabilize heavy machinery and reduce downtime caused by leaks.
ID × CS (mm) | Application |
93 × 1.8 | Reactor fittings |
150 × 3.55 | Chemical towers |
200 × 3.55 | Large pumps |
590 × 1.8 | Water treatment valves |
Global suppliers report a set of sizes requested more often because they fit universal equipment designs. Many industries follow AS568, ISO, or GB/T standards, and they repeat order the same sizes for pumps, valves, and automotive platforms. These sizes balance availability, cost, and strong sealing performance.
Size Type | Popular Dimension | Typical Use |
Small | 7 × 1.8 mm | Connectors, electronics |
Medium | 25 × 3.55 mm | Hydraulic cylinders |
Large | 93 × 1.8 mm | Petrochemical pipes |
Extra-Large | 150–590 mm IDs | Water treatment, reactors |

Accurate measurement ensures every FKM O-ring fits its groove, resists pressure, and maintains sealing strength. The material stays stable under heat, yet it can deform slightly during handling, so each measurement must follow a controlled process. Engineers rely on simple tools, and they focus on ID and CS because these dimensions define most standard sizes.
Measuring tools must capture small differences because even a 0.1 mm error affects sealing. Digital calipers work for most rings, and they give quick readings. For thin CS values, engineers often use a pin gauge or a tapered gauge because it prevents squeezing the rubber. Optical comparators help measure large O-rings when calipers cannot span the full diameter.
Recommended tools include:
● Digital or Vernier calipers for ID and CS
● Ring gauges for repetitive sizing
● Optical comparators for large OD checks
● Flat glass plates for stabilizing the O-ring
These tools reduce distortion, and they help teams keep results consistent across batches.
Measuring the inner diameter requires placing the caliper tips gently inside the ring. The O-ring should lie flat on the table, and the caliper jaws should not stretch it. Engineers rotate the ring slightly to confirm the reading stays consistent. They also avoid pulling because it increases the ID, and it leads to incorrect size selection.
Step | Action |
1 | Lay O-ring flat, avoid bending |
2 | Insert caliper tips inside ID |
3 | Apply minimal pressure |
4 | Check reading at multiple angles |
Cross-section thickness changes easily if the ring is squeezed. To avoid this, the ring should sit on a flat plate, and the caliper jaws should touch lightly from above. Some technicians use a gauge block to support the ring, so it stays round. When the CS is small, optical tools show the profile without compression.
Global systems use different naming rules. AS568 uses dash numbers, while ISO and GB/T use ID × CS in millimeters. A conversion chart helps link a dash number to its metric equivalent. When converting, engineers match both the ID and the CS, not just one dimension.
Several errors occur during measurement, and they often lead to incorrect replacements. Stretching the ring while holding it raises the ID, and squeezing it lowers the CS. Measuring warm O-rings also creates variation because heat softens the material. Dirty grooves or dust also distort readings when the ring rests on the surface.
Selecting the correct FKM O-ring size ensures stable sealing, long service life, and fewer system failures. Every application demands a balance of ID, CS, tolerance, and environmental conditions. These factors influence how the O-ring behaves once compressed, and they help engineers avoid leaks, extrusion, or swelling during operation. A precise match between groove dimensions and material performance keeps the seal reliable even in harsh industrial environments.
The inner diameter must align closely to the shaft or groove, and it determines how much stretch the O-ring experiences. A smaller ID often fits better when oils or fuels cause slight swelling. If the ID is too large, the ring can slip or twist during installation. When the ID is much smaller, it over-stretches, and this reduces compression force. Engineers measure both the hardware and the relaxed O-ring because sizing errors often come from assuming the shaft equals the final ID.
The cross-section sets the sealing pressure, and it must fit the groove depth to achieve the correct compression. A thicker CS increases contact force, and it improves resistance to extrusion. When CS is too large, it overfills the groove, and friction rises. If CS is too small, it cannot withstand pressure or vibration. Designers match CS based on groove geometry, and they aim for controlled compression around 20–30%.
Important considerations include groove width, side clearance, and surface finish, because each element affects CS performance.
FKM expands slightly under heat, and it reacts differently to acids, oils, solvents, or fuels. The amount of swell depends on fluorine content, and it varies from 5–10% in common oils. Higher temperatures accelerate expansion, so engineers must consider operating ranges before choosing the final size. Chemical swelling increases the ID and CS, while heat softens the ring. Selecting a slightly smaller ID or a higher fluorine grade helps offset this growth.
Pressure determines how much CS thickness is needed to resist extrusion. High-pressure hydraulic systems benefit from a larger CS because it distributes load evenly. A thinner CS works well in low-pressure or static applications, and it reduces friction. Engineers match CS to pressure brackets, and they adjust the groove design so the ring stays stable during cycling.
FKM O-ring size depends on ID, CS, tolerance, and the chosen standard. Accurate sizing protects seal strength and extends service life. It also helps equipment run safely under heat or chemical exposure. A correct choice considers the operating environment and groove design. LIXU offers reliable FKM O-rings that improve durability and support demanding industrial needs.
A: An FKM O ring size is defined by its ID, CS, and tolerance, and each measurement ensures proper sealing performance.
A: Measure the ID and CS using calipers, and keep the FKM O ring flat to avoid distortion.
A: Common systems include AS568, ISO 3601, JIS, and GB/T, and each helps match the correct size.
A: Size impacts compression and stretch, and a wrong fit reduces service life and increases leak risk.
A: Yes, small FKM O ring sizes fit valves, connectors, and fuel system components.
