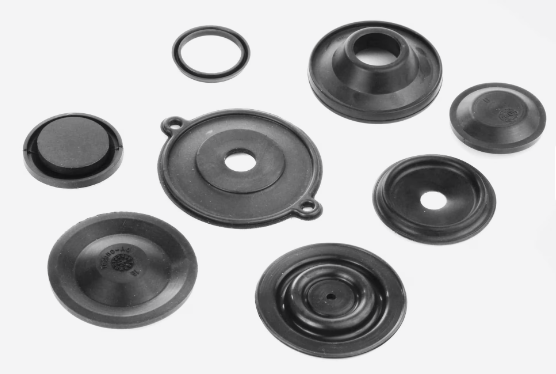

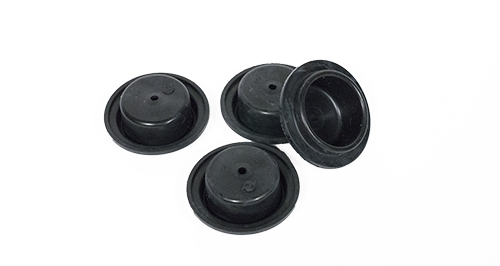

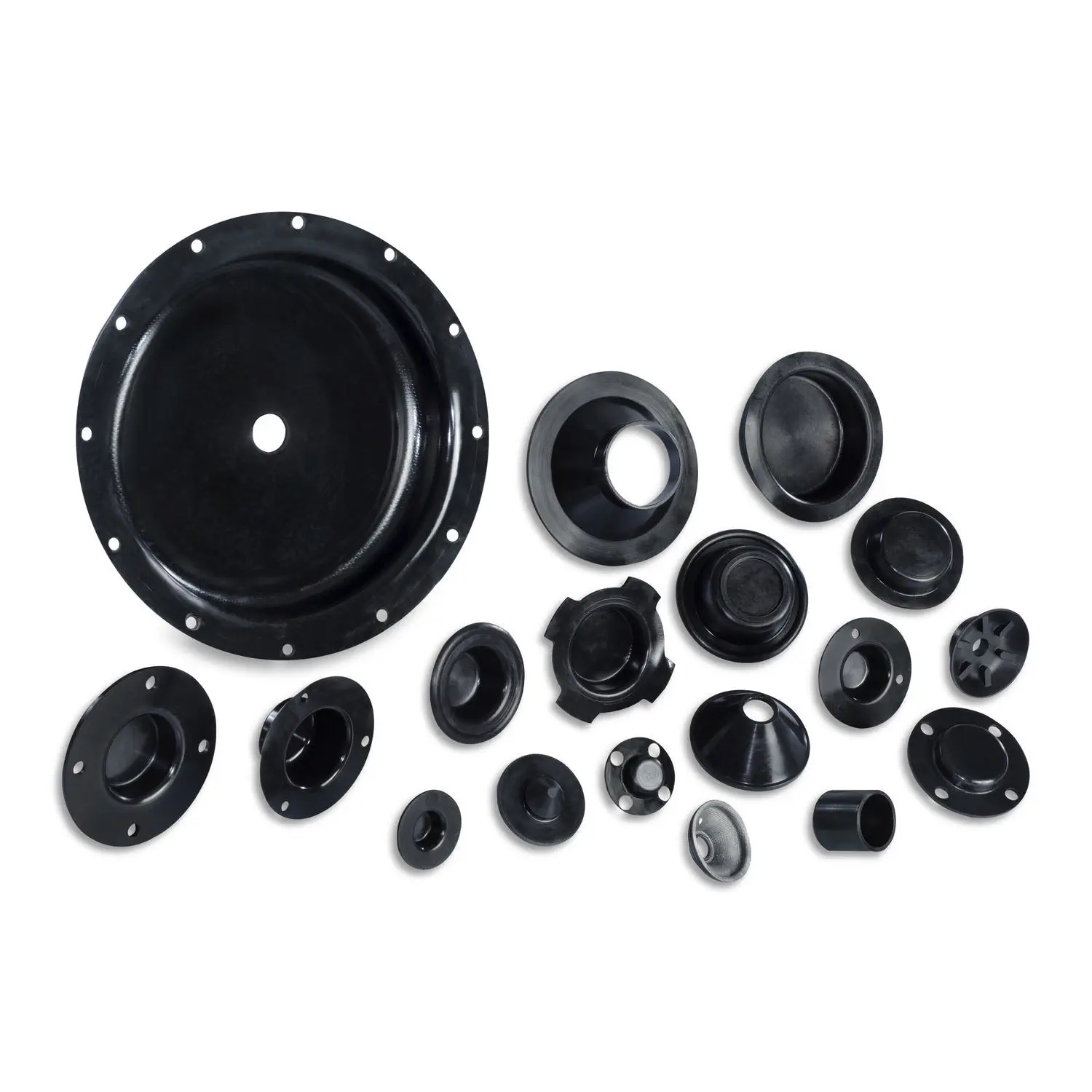

A rubber diaphragm is a flexible, airtight membrane engineered to separate two chambers or regulate the flow of liquids and gases. Constructed from elastomeric materials such as NBR (nitrile butadiene rubber), FKM (fluororubber), and EPDM (ethylene propylene diene monomer), these diaphragms deform under pressure to control parameters like flow rate, pressure, and temperature. Their versatility lies in combining elasticity with structural integrity, making them ideal for applications requiring reliable sealing and mechanical actuation.
Rubber diaphragms are critical industrial components that enable precise control of fluid and gas media through elastic deformation. Designed to withstand dynamic pressures and harsh environments, these diaphragms are widely used in valves, pumps, actuators, and automated systems across industries such as automotive, chemical processing, pharmaceuticals, and food manufacturing. This comprehensive guide explores the technical specifications, manufacturing processes, and application-specific solutions offered by Lixu Rubber, a leading provider of high-performance rubber diaphragms.
Rubber diaphragms are classified into three primary categories based on design:
Structure: Smooth, planar surfaces with uniform thickness.
Applications: Low-pressure systems, basic valves, and static sealing.
Advantages: Cost-effective, simple installation, and compatibility with non-corrosive media.
Structure: Folded or ridged profiles to enhance flexibility and stroke length.
Applications: High-pressure pumps, pressure regulators, and dynamic environments.
Advantages: Improved resistance to fatigue and increased operational lifespan.
Structure: Multi-layered designs combining rubber with reinforcing materials (e.g., nylon fabric, glass fiber, or metal inserts).
Applications: Heavy-duty industrial equipment, chemical processing, and aerospace systems.
Advantages: Enhanced tear resistance and tensile strength while maintaining elasticity .
Lixu Rubber employs advanced techniques to ensure diaphragms meet rigorous performance standards:
Rubber Compounds: Custom formulations of NBR, FKM, EPDM, or silicone are blended with curing agents and additives to achieve desired properties
Reinforcement Materials: Nylon or glass fiber layers are embedded during molding to increase structural integrity, with outer diameters up to 616mm .
Process: Pre-shaped rubber compounds are placed in heated molds and subjected to high pressure, forming diaphragms with tight tolerances (±0.05mm).
Coating Treatments: Single-layer TFM or dual-layer PTFE+elastomer coatings are applied to improve wear resistance and sealing performance .
FDA Compliance: Diaphragms undergo strict testing to meet FDA §177.2600 standards for pharmaceutical and food-grade applications .
Durability Testing: Fatigue resistance is validated through cyclic pressure tests (up to 1 million cycles) to ensure longevity.
Chemical Resistance: Excellent for mineral oils, fuels, and hydraulic fluids.
Temperature Range: -20°C to +250°C.
Applications: Automotive brake systems, industrial pumps, and oil filtration .
Chemical Resistance: Resistant to strong acids, alkalis, and solvents.
Temperature Range: -10°C to +280°C (wider than NBR).
Applications: Chemical processing, aerospace, and high-temperature seals .
Chemical Resistance: Suitable for steam, water, and mild acids.
Temperature Range: -50°C to +200°C.
Applications: HVAC systems, automotive gaskets, and pharmaceutical equipment .
Chemical Resistance: FDA-compliant for food and medical use.
Temperature Range: -60°C to +230°C.
Applications: Medical devices, beverage processing, and high-temperature sensors .
Purpose: Nylon or glass fiber layers are laminated between rubber layers to increase tear resistance and dimensional stability.
Technical Specs: Outer diameters up to 616mm, with thicknesses ranging from 0.5mm to 10mm .
TFM Coating: Single-layer treatment for basic wear resistance.
PTFE+Elastomer Coating: Dual-layer system combining chemical resistance (PTFE) with elasticity (elastomer) for aggressive environments .
Certifications: FDA-compliant diaphragms feature smooth surfaces to prevent particle accumulation, ideal for sterile environments like pharmaceutical manufacturing .
Examples: Engine hydraulic mounts, brake system actuators, and fuel injection valves.
Benefits: Improved shock absorption, leak prevention, and compliance with automotive standards .
Examples: Corrosive liquid transfer pumps, pressure relief valves, and reactor seals.
Material Selection: FKM or PTFE-coated diaphragms for resistance to acids and solvents .
Examples: Dairy processing valves, beverage bottling equipment, and food-grade pumps.
Certifications: FDA-compliant silicone or EPDM diaphragms ensure hygiene and safety .
Examples: Sterile fluid control in drug manufacturing, bioreactors, and filling machines.
Design Features: Smooth-surfaced, FDA-approved diaphragms with zero particulate shedding .
Examples: Pneumatic actuators, fuel system seals, and landing gear components.
Material Selection: High-strength FKM or fabric-reinforced silicone for extreme temperatures and pressures .
Lixu Rubber offers tailored solutions to meet unique requirements:
Size Range: Diameters from 10mm to 280mm, heights from 3mm to 280mm, with adjustable thicknesses .
Reinforcement: Metal inserts, Kevlar layers, or specialized fabrics for high-pressure applications.
Surface Treatments: Laser etching, texturing, or color coding for easy identification.
