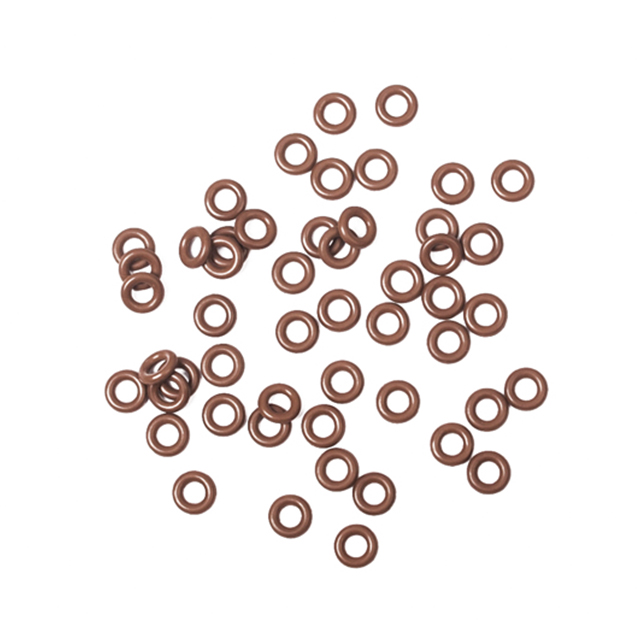

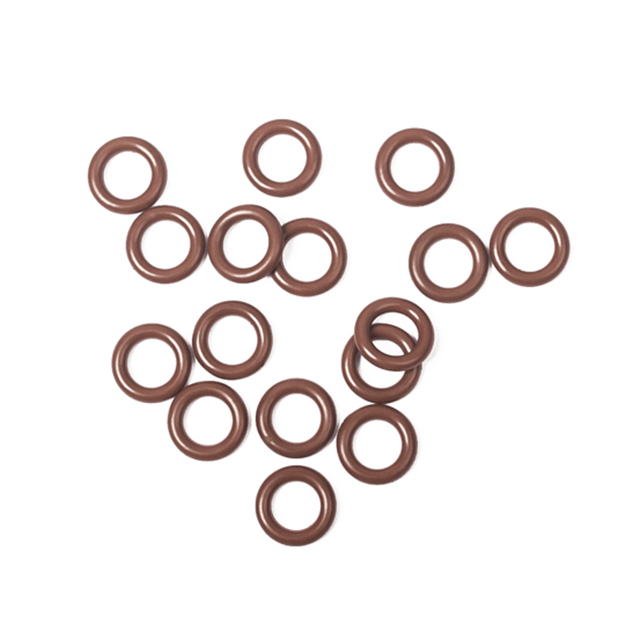

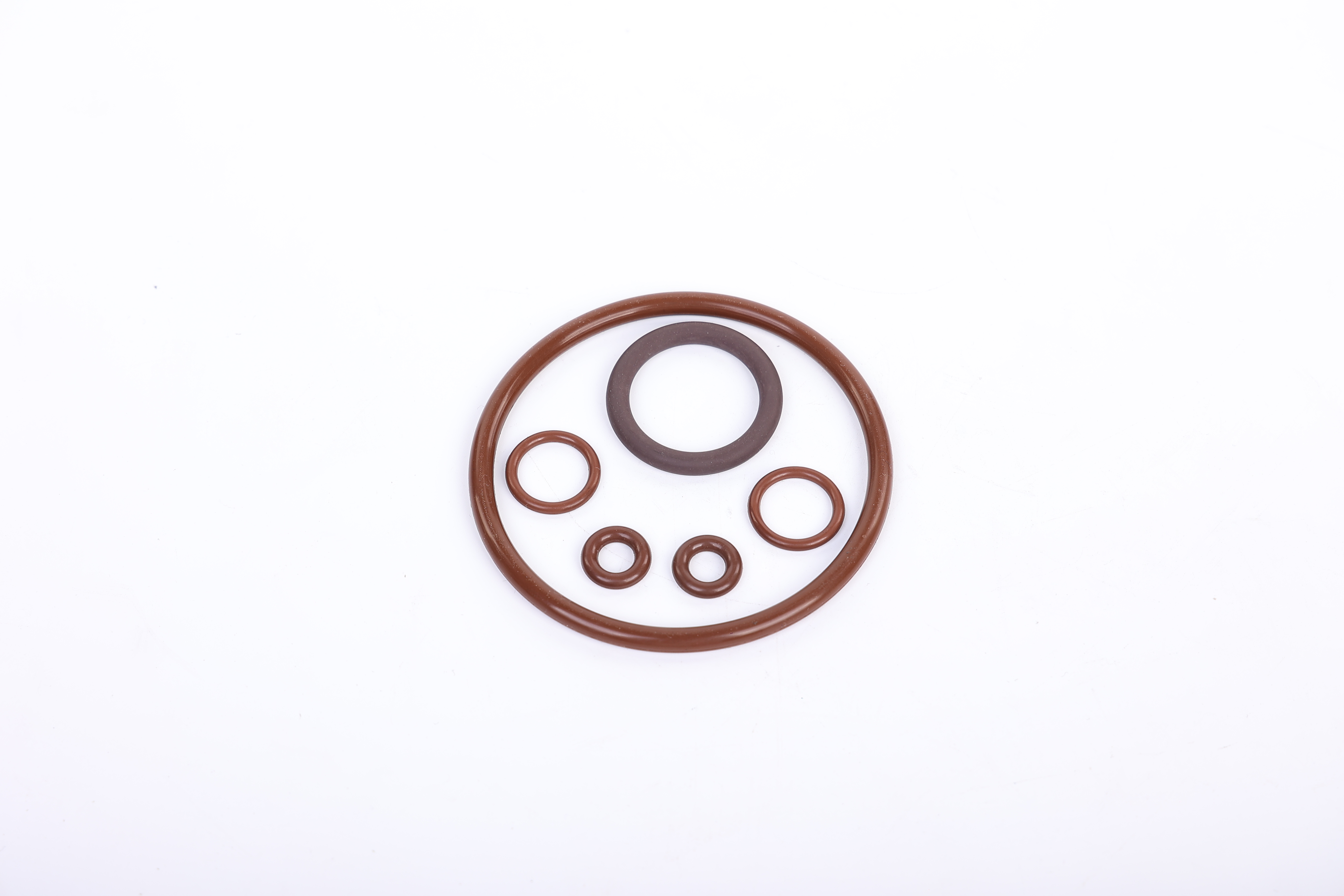

Brown FKM, FPM, Viton O Ring

I. Product Features

1. High-temperature resistance: Fluororubber O-rings can maintain stable physical properties in high-temperature environments. Their high-temperature resistance can reach over 200℃, and some specially formulated products can even withstand higher temperatures.

2. Chemical resistance: FKM has excellent resistance to various chemical substances, including oil, hydraulic oil, fuel oil, lubricants, inorganic acids, aliphatic hydrocarbons and aromatic hydrocarbons, etc.

3. Oil resistance: FKM O rings have excellent sealing performance in oily media and are not prone to expansion or deformation.

4. Wear resistance: Fluororubber material has high hardness and strength, which enables O-rings to have a long service life in friction and wear environments.

Size: AS568, Metric and Inch or Any custom size

Certificate: ROHS, REACH.

i. Application Fields

Brown FPM rubber O-rings are widely used in multiple fields due to their excellent performance, including but not limited to:

1. Automotive industry: Used for sealing in parts such as engines, transmissions, and fuel systems.

2. Aerospace: It is used for sealing and coating of aircraft, rockets and other aerospace vehicles.

3. Petrochemical industry: It is used for sealing pipelines, valves, pumps and other equipment to prevent the leakage of chemical substances.

4. Electronics and electrical appliances: Used for sealing and insulation of electronic devices and electrical products.

5. Mechanical manufacturing: Used for sealing in various mechanical equipment and hydraulic systems.

Iii. Production Process and Inspection Standards

1. Production process: The procedures of Brown FKM rubber O-rings productions mainly includes material selection, rubber compound mixing, extrusion or injection molding, vulcanization (heat curing), demolding and trimming, etc.

2. Inspection Standards: Before Shipment, We will conduct strict inspections on the brown Viton rubber O-rings, including appearance inspection, dimensional accuracy measurement, physical property testing (such as hardness test, tensile strength and elongation test, compression set test, etc.) and corrosion resistance test to ensure that the quality and performance of the O-rings meet the design requirements and usage needs.

TDS For Brown FKM o rings hardness 60SH.

CIXI LIXU RUBBER PRODUCTS FACTORY

FKM RUBBER PHYSICAL TEST REPORT

CH/QR8212                                               Report No：20170802038

Depart：     Mixing Dep     MATERIAL：  FKM    CODE：     B-3

LoT No.：   170715038     Weight：   1000   KG  Curing Condition：185 ℃×  7  min

Test Temerature ：25℃     Humidity：   56%   Standard Code： HG/T 2333-92
