High Pressure Rubber Diaphragms for Pumps | Durable, Custom Factory Solutions
Factory Introduction: Your Trusted Partner for High Pressure Rubber Diaphragms for Pumps
With over 15 years of expertise in industrial rubber components, Lixu Rubber specialize in manufacturing high pressure rubber diaphragms for pumps that meet the strictest industry standards. Our factory is equipped with advanced compression and injection molding equipment, holding ISO 9001, FDA, and RoHS certifications to ensure every batch of high pressure rubber diaphragms for pumps delivers consistent quality. Serving global clients in oil and gas, water treatment, chemical, and fluid handling sectors, We offer OEM/ODM services tailored to your pump model, medium, and pressure needs—because the right high pressure rubber diaphragms for pumps can minimize downtime and maximize efficiency.
Product Overview: High Pressure Rubber Diaphragms for Pumps

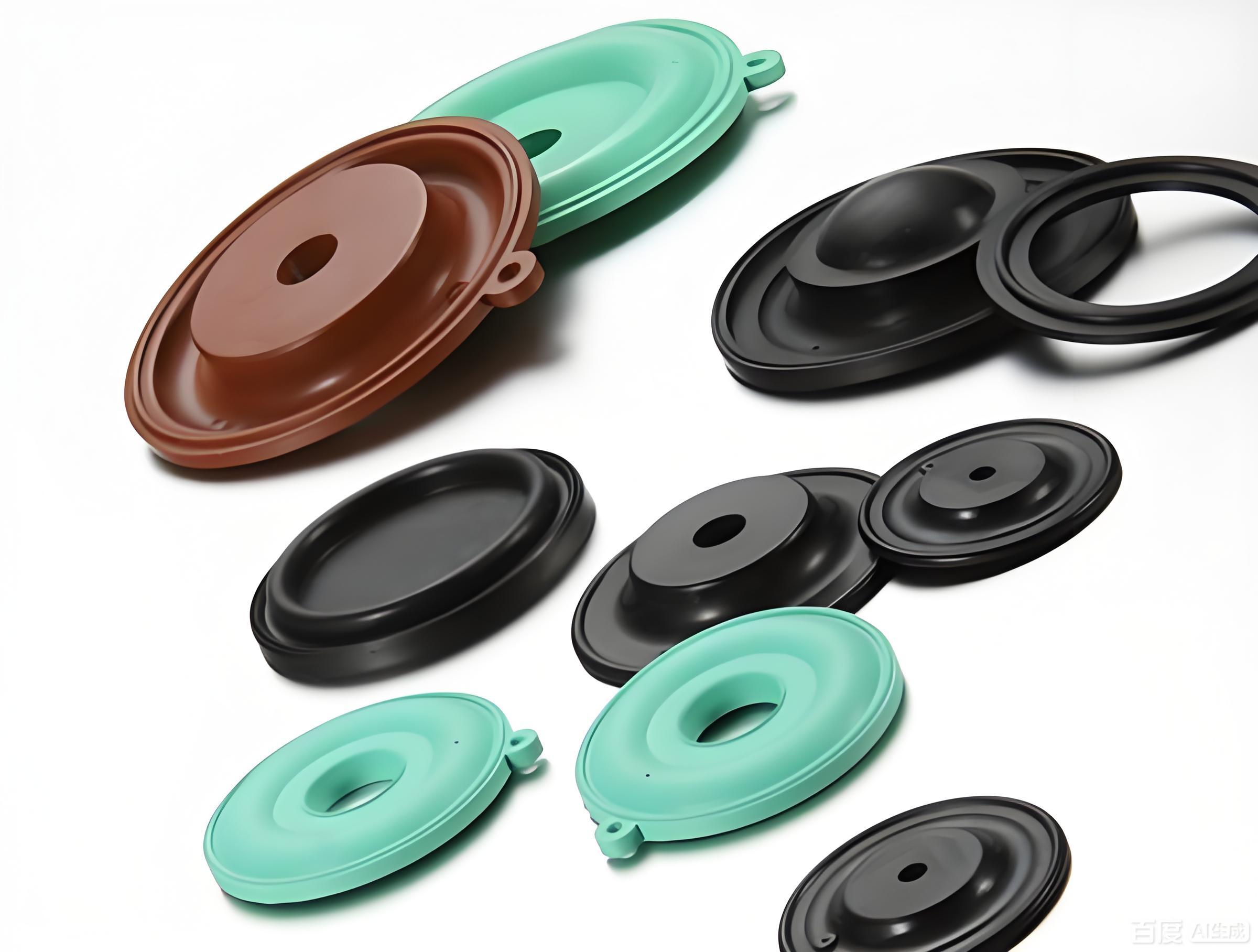

Our high pressure rubber diaphragms for pumps are engineered as critical barriers between a pump’s drive mechanism and fluid medium, ensuring leak-free operation even under extreme conditions. As a leading supplier of high pressure rubber diaphragms for pumps, we prioritize performance and durability in every product we make.
Product Name: High Pressure Rubber Diaphragms for Pumps
Core Materials: Nitrile Rubber (NBR), Fluoro Rubber (FKM/Viton®), EPDM Rubber, Silicone Rubber, Neoprene Rubber—selected to enhance the lifespan of high pressure rubber diaphragms for pumps
Pressure Rating: Up to 500 bar (custom ultra-high pressure versions available for specialized high pressure rubber diaphragms for pumps)
Temperature Range: -50°C to +250°C (material-dependent, optimized for diverse high pressure rubber diaphragms for pumps applications)
Size Range: 20mm–1200mm diameter (custom sizes for unique high pressure rubber diaphragms for pumps needs)
Certifications: ISO 9001, FDA 21 CFR 177.2600, RoHS, REACH—validating the reliability of our high pressure rubber diaphragms for pumps
Key Advantages of Our High Pressure Rubber Diaphragms for Pumps
1. Exceptional Pressure Resistance for Reliable Performance
Crafted from high-grade rubber compounds with reinforced nylon, polyester, or aramid fabric layers, our high pressure rubber diaphragms for pumps maintain structural integrity under 500 bar pressure. Unlike inferior alternatives, Our high pressure rubber diaphragms for pumps resist deformation and rupture during long-term continuous operation—critical for high-stress pump systems.
2. Chemical Compatibility to Suit Every Application
We match the right material to your fluid medium, ensuring your high pressure rubber diaphragms for pumps stand up to corrosive or demanding substances:
FKM/Viton®: Ideal for strong acids, solvents, and petroleum—perfect for oilfield and chemical transfer high pressure rubber diaphragms for pumps
NBR: Excellent oil resistance for lubricating fluid and hydraulic high pressure rubber diaphragms for pumps
EPDM: Superior water/steam resistance for water treatment and boiler feed high pressure rubber diaphragms for pumps
Silicone: Food-grade option for pharmaceutical and beverage high pressure rubber diaphragms for pumps
3. Wear & Fatigue Resistance for Long-Lasting Value
Advanced vulcanization technology gives our high pressure rubber diaphragms for pumps high elasticity and low compression set. Capable of withstanding 10+ million cyclic movements without cracking, our high pressure rubber diaphragms for pumps extend your pump’s maintenance interval and reduce operational costs.
4. Precision Manufacturing for Perfect Fit
CNC cutting and molding ensure our high pressure rubber diaphragms for pumps meet tight dimensional tolerances (±0.1mm). No burrs or uneven thickness means our high pressure rubber diaphragms for pumps fit seamlessly with your pump housing, eliminating leakage risks from poor fitment.
5. Custom Solutions for Your Unique High Pressure Rubber Diaphragms for Pumps Needs
We tailor high pressure rubber diaphragms for pumps to your drawings or samples, including reinforced layers for ultra-high pressure, PTFE coatings for enhanced resistance, and shapes (flat, conical, rolling) for diaphragm pumps, metering pumps, and piston pumps.
Product Specification Table: High Pressure Rubber Diaphragms for Pumps
| Parameter | Specification Range | Customization for High Pressure Rubber Diaphragms for Pumps |
| Material Type | NBR, FKM/Viton®, EPDM, Silicone, Neoprene | Custom compounds for special medium resistance |
| Pressure Rating | Up to 500 bar (standard); max 800 bar (reinforced) | Ultra-high pressure versions with metal inserts |
| Temperature Range | -50°C to +250°C (material-dependent) | Low (-80°C) or high (+300°C) grade options |
| Size Range | Diameter: 20mm–1200mm; Thickness: 1mm–20mm | Non-standard sizes per drawings/samples |
| Fatigue Resistance | ≥10 million cycles | Extended life version (≥20 million cycles) |
Applications: Where Our High Pressure Rubber Diaphragms for Pumps Excel
Our high pressure rubber diaphragms for pumps are trusted in critical industries worldwide, delivering consistent performance in diverse pump systems:
Oil & Gas: Mud pumps, wellhead injection pumps, hydraulic fracturing pumps—relying on durable high pressure rubber diaphragms for pumps
Chemical: Corrosive fluid metering pumps, process pumps—using chemical-resistant high pressure rubber diaphragms for pumps
Water Treatment: Sewage pumps, RO system pumps—needing reliable high pressure rubber diaphragms for pumps
Food & Pharma: Sanitary metering pumps, beverage transfer pumps—featuring FDA-approved high pressure rubber diaphragms for pumps
Why Choose Our High Pressure Rubber Diaphragms for Pumps?
Advanced Production for Consistent Quality
We operate 20+ compression molding machines (50–500 tons) and automated rubber mixing equipment to ensure every batch of high pressure rubber diaphragms for pumps meets our strict standards. Precision CNC cutting guarantees accuracy for custom high pressure rubber diaphragms for pumps.
Strict Quality Control for Reliable High Pressure Rubber Diaphragms for Pumps
Raw Material Testing: Hardness (Shore A), tensile strength, and chemical resistance checks before production
In-Process Inspection: Molding temperature/pressure monitoring for flawless high pressure rubber diaphragms for pumps
Final Testing: 100% pressure leakage, dimensional, and fatigue tests for all high pressure rubber diaphragms for pumps
Fast Delivery & Factory-Direct Pricing
Standard high pressure rubber diaphragms for pumps: In-stock, 3–7 day delivery. Custom high pressure rubber diaphragms for pumps: Samples in 7–10 days, mass production in 15–25 days. Factory-direct sales mean no middlemen—competitive pricing for bulk high pressure rubber diaphragms for pumps orders.
How to Order Your High Pressure Rubber Diaphragms for Pumps ?
Share Your Requirements: Pump model, diaphragm size (diameter/thickness), pressure/temperature, fluid medium, and quantity for your high pressure rubber diaphragms for pumps.
Sample Approval: We produce a custom sample of high pressure rubber diaphragms for pumps for your testing.
Mass Production: We start production and update you on your high pressure rubber diaphragms for pumps order progress.
Delivery & Support: Global shipping (sea/air/express) and 24-hour after-sales support for your high pressure rubber diaphragms for pumps.
Contact Us for High Pressure Rubber Diaphragms for Pumps
Ready to source durable, high-performance high pressure rubber diaphragms for pumps?
Contact our team today for a free quote and sample. We’re here to create the perfect high pressure rubber diaphragms for pumps solution for your needs.
Need reliable high pressure rubber diaphragms for pumps? Contact us now for a free quote—Let’s optimize your pump performance together!
