Silicone gaskets, a subset of rubber gaskets, are engineered to provide reliable sealing in demanding industrial and commercial applications. Composed of silicone rubber, a synthetic elastomer known for its exceptional thermal stability and chemical resistance, these gaskets excel in environments where other materials may fail. Unlike natural rubber or nitrile rubber (NBR), silicone maintains its elasticity and integrity across a broad temperature range and resists degradation from oils, chemicals, and UV exposure .
Silicone rubber is derived from silicon, oxygen, hydrogen, and carbon, creating a polymer with unique molecular structures. This material is classified into two main types:
Standard Silicone: Ideal for general-purpose applications requiring moderate chemical resistance.
Fluorosilicone: Engineered for enhanced resistance to fuels, oils, and solvents, making it suitable for aerospace and automotive industries .
Temperature Resistance: Silicone gaskets withstand extreme temperatures, typically ranging from -60°C to +230°C (-76°F to +446°F), with some formulations enduring intermittent peaks up to 260°C (500°F) .
Chemical Stability: Resistant to acids, alkalis, and most organic solvents, silicone remains unaffected by prolonged exposure to common industrial chemicals .
Biocompatibility: FDA-approved silicone grades ensure compliance with food safety and medical standards, making them suitable for direct contact with food, pharmaceuticals, and sterile environments .
Electrical Insulation: Silicone’s dielectric properties make it a preferred choice for electronic components and high-voltage applications .
Silicone gaskets are widely adopted across industries due to their adaptability and durability:
FDA-compliant silicone gaskets are used in equipment such as mixers, conveyors, and packaging machinery. Their non-toxic, odorless properties ensure product safety, while high-temperature resistance allows sterilization processes .
In medical devices, silicone gaskets provide leak-proof seals in syringes, respirators, and diagnostic equipment. Their biocompatibility and resistance to sterilization methods (e.g., autoclaving) are critical for maintaining aseptic conditions .
Silicone gaskets seal engine components, exhaust systems, and hydraulic connections, where they endure heat, oil, and vibration. In aerospace, they are used in fuel lines and oxygen systems due to their reliability under extreme conditions .
Silicone’s electrical insulation and thermal stability make it ideal for seals in circuit boards, refrigerators, and ovens. It also prevents dust and moisture ingress in consumer electronics .
Fluorosilicone gaskets resist aggressive chemicals and high-pressure environments, ensuring integrity in pipelines, reactors, and storage tanks .
Silicone gaskets are available in diverse configurations to meet specific requirements:

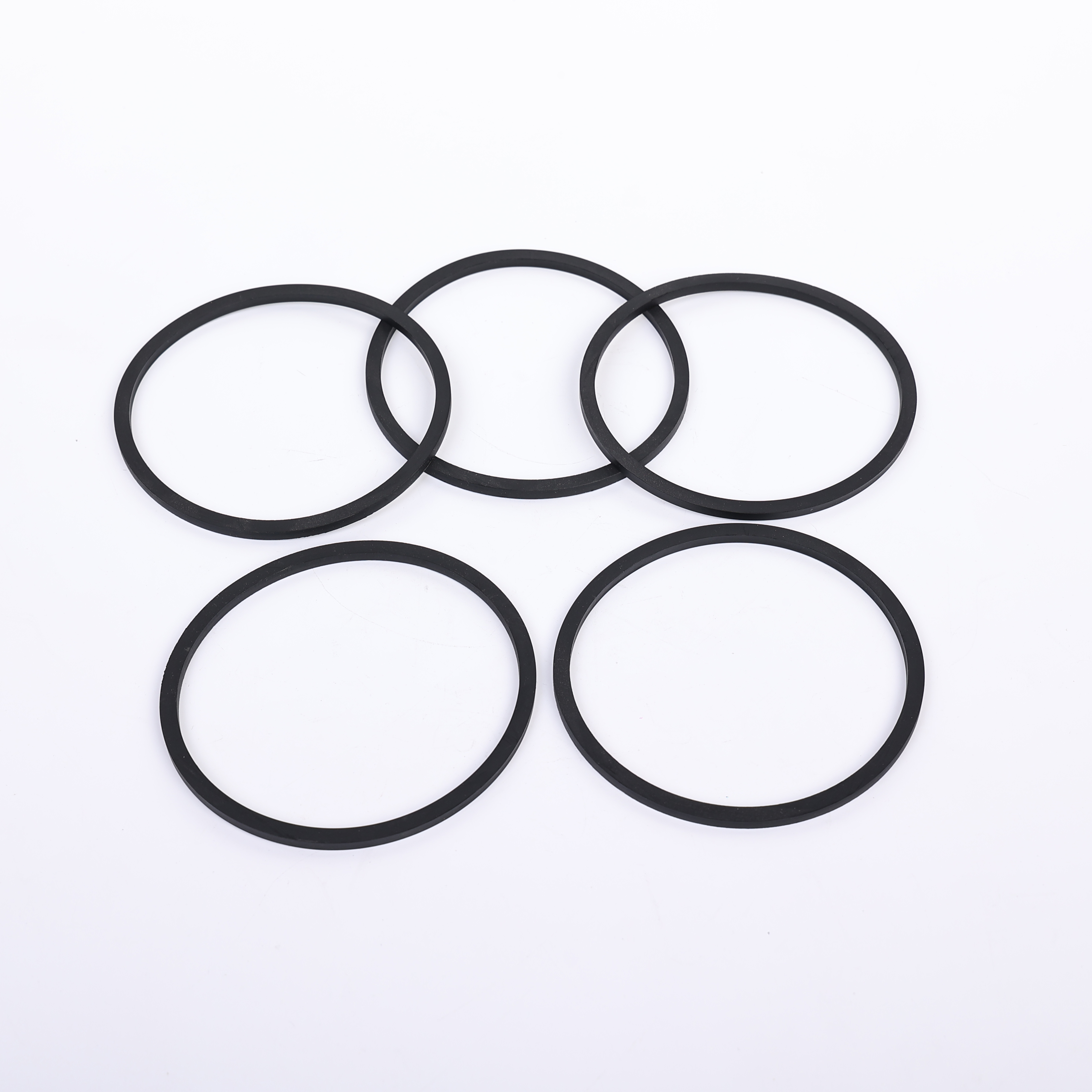

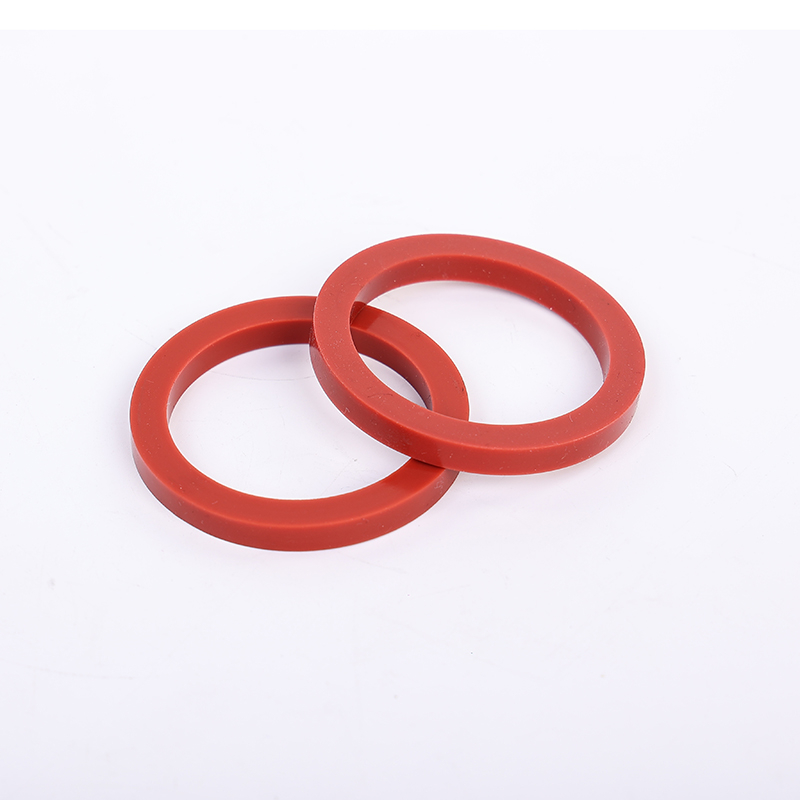

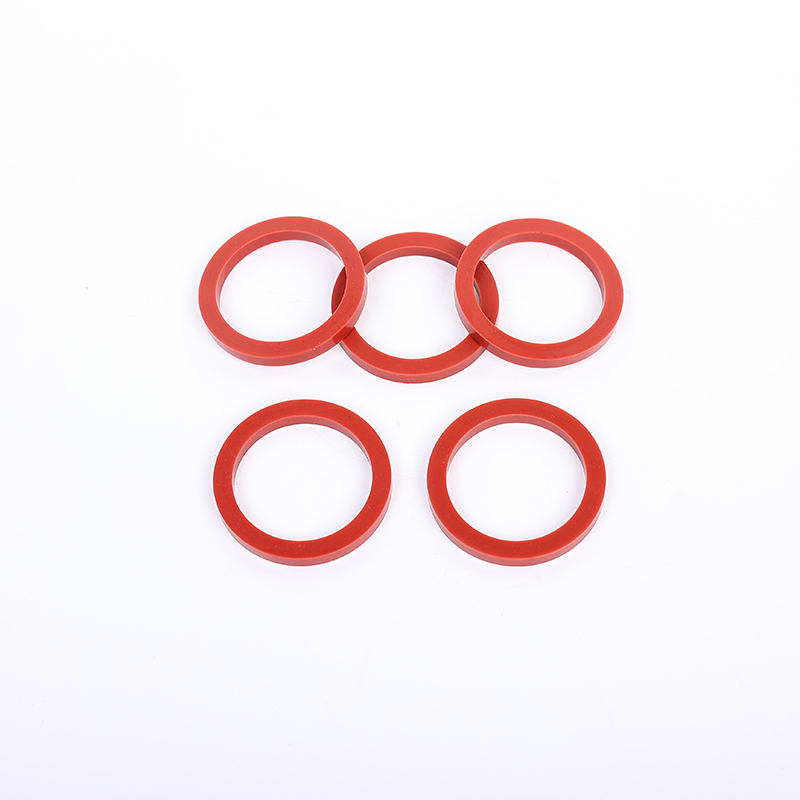

Circular Gaskets
Standard Circular: For pipe connections and flanges.
Perforated Circular: Enables fluid/gas flow in faucets and pneumatic systems.
Wavy Circular: Enhanced sealing under high pressure .
Square/Rectangular Gaskets
Standard Square: Uniform sealing for flat surfaces.
Composite Square: Combines materials for extreme environments.
Special-Shaped Gaskets
Custom designs for irregular interfaces, including cylindrical, conical, and wedge profiles .
Die-Cut Gaskets: Precision-cut from silicone sheets, ideal for simple shapes and cost-effective production .
Molded Gaskets: Produced via compression, injection, or transfer molding for complex geometries and high-volume orders .
Extruded Gaskets: Continuous profiles for sealing doors, windows, or machinery .
Parameter | Typical Range | Notes |
Temperature Range | -60°C to +230°C (-76°F to +446°F) | Extended grades up to 260°C (500°F) . |
Hardness | 30–80 Shore A | Varies by application (softer for sealing, harder for structural support) . |
Pressure Resistance | Up to 1,233 psi (85 bar) | Dependent on material and design . |
Chemical Resistance | Excellent vs. oils, acids, alkalis | Degrades in concentrated sulfuric acid or hydrofluoric acid . |
Lixu Rubber offers end-to-end solutions for silicone gasket production:
Design Support: Expert engineers collaborate with clients to optimize gasket geometry for performance and cost-effectiveness.
Material Selection: Tailored formulations (e.g., FDA-compliant, flame-retardant) based on application requirements.
Mold Development: In-house tooling capabilities for rapid prototyping and mass production.
Quality Assurance: Stringent testing for dimensional accuracy, compression set, and chemical resistance .
Yes. FDA-approved silicone grades meet strict safety standards for direct food contact, ensuring no harmful chemical migration .
Use mild detergents and warm water. Avoid abrasive cleaners, as they may damage the surface. For sterilization, autoclaving at 121°C (250°F) is recommended .
While reusable in low-stress applications, repeated installation/removal may compromise sealing performance. Regular inspection is advised.
With proper maintenance, silicone gaskets can last 5–10 years in typical industrial settings, depending on temperature, pressure, and chemical exposure .
